Securitex Industrial Exproof Portable Lighting supply

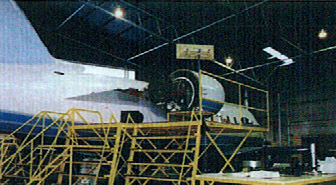

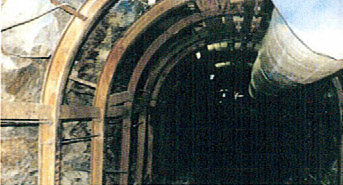

Aircraft Maintenance        Exproof Safety portable lights        Tunneling Application



CF11-32-21T     (11 watts Version)

CFE40-32-11T   (40Watts Version)

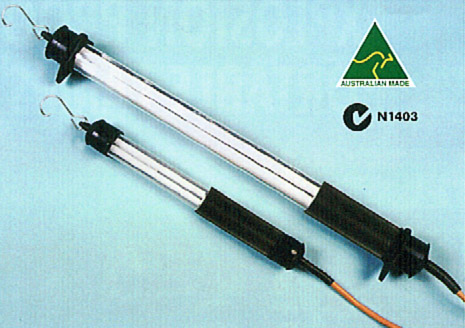

The Securitex Exproof Safe-T-Lite is a rugged and compact lightweight design portable lamp, which is ideal for inspection of fuel storage tanks and drums, aircraft maintenance, industrial projects, mining, mariner application and tunneling inspection etc. This light is extremely suitable for use in vessel entry, tank cleaning for Oil gas and hazardous chemical industries. Suitable for use in Class 1 Zone 1 SAA Cert No EX3027X. Category: Ex me IIC T4, 1P66/IP68

Features

  • Heavy duty cable, elastomeric rubber, bright orange, resists oils, greases, petroleum and solvents, self extinguishing
  • End caps. Oil resistant nitrile rubber
  • Insulated swivel hook and hanging loops. Allows vertical or horizontal mounting.
  • Replaceable clear protective outer sleeves for use with paint over spray, solvents, corrosive petroleum products, etc.
  • Supplied with choice of 2-pin plug tops
  • Portable multi-outlet supply systems. Design services available.
  • Long life high tech electronic fluorescent lamps. Replacement service available.
  • Polycarbonate outer case. High impact resistant.
  • Easy handling. Has lightweight electronic inverter and comfortable fluted rubber handgrip
  • Efficient chrome reflector/glare shield
  • Supplied with 10m 32Vac Hazardous Location cable and In-Line 240/32V transformer c/w 2M length 230Vac 3 core NBR flex cable and 3 pin plug.

Specification

Catalogue No

Wattage

Voltage

Line Current

Length

O/Case Dia.

Weight

CF11-32-21T

11 watt

32v A-C

0.5 Amp

420mm

42mm

550gm approx

CFE40-32-11T

40 watt

32v A-C

1.45 Amp

760mm

54mm

1kg approx



Vessel Entry

Product Made in Australia
