Mobile Digital Video Recorder

Feature

■Anti-Vibration, Anti-Shock Design

■Portable Design (Outer Housing support)

■RTOS (Real Time Operating System) base

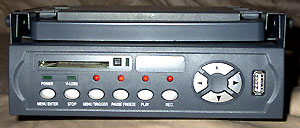

■Front Panel Design

■M-JPEG Compression, .Avi file format support

■LED Indicator for status monitoring

■Compact Flash Card for Manual & Collision Trigger Recording

■USB port for File Backup

■Friendly User Interface (Front-Panel Control)

■Plug and Play, system reboots automatically

■Synchronized Audio Recording

Specification highlight

1.Resolution: 			720x240 (1~10fps) / 360x240 (1~15fps)

2.Codec: 				Motion-JPEG, 20KB/ per frame (720x240)

3.Recording Mode: 			Motion/ Continuous, 1x Audio Recording

4.Storage: 			Internal 2.5”HDD x1, Compact Flash Card x1 for Trigger storage

5.Trigger Mode Recording: 		Alarm input or Manual Trigger key

6.USB interface: 			Access picture data stored in 2.5” HDD

7.Storage: 			20GB/ 1fps/ 1ch/ 720x240 --> 12 days

8.Outer Housing: 			With Remote Controller

Specification:

Video Input                                           	1 channel

Audio Input                                           	1 channel

Video Output                                        	1 channel

Audio Output                                        	1 channel

RS232 Baud Rate                     	1200/2400/4800/9600

Display Rate                                        	Real Time

Alarm Input                                           	Yes

Video Loss Detection                    	Yes

Compression                                       	M-JPEG

Recording Rate                             	360x240(15 fps)

                                   	 	720x240(10 fps)

Recording Duration                  	20GB HDD/ 5 fps/ 360x240 --> 4.8days

Audio Recording                            	Yes

OSD Manual                                        	Yes

Storage                                                	2.5” HDD (Notebook size)

Motion Detection                    		Yes

USB Interface                                       	Mass Backup

Playback Source                     	From HDD, Compact Flash Card (Selectable)

Date/ Time search                               	Yes

Fast Forward                                       	x1, x2, x4

Fast Reverse                                       	x1, x2, x4

Freeze                                                  	Yes

RS-232                                                 	Remote Controller

Trigger Function                            	Manual/ Input Trigger support

                                    		(Image will be saved into CFC)

Weight                    			N.W      : 2.4  KGS

                                    		G.W      : 2.86 KGS

Dimension          			Machine  : 67   x 174 x 226 (mm)

                                    		Inner Box: 290 x 270 x 120 (mm)

				DC 11~32V Power Input

				DC 9.6V Power Out for camera

Power Consumption 		24W(12V, 2A)

Outer Housing Design

Recording Duration:

HDD   	Channel	Fps         Resolution     	Recording hours    Recording day

20GB      1             	10           720x240(20KB)     	29.1 hours            	1.2

20GB      1             	5             720x240(20KB)     	58.2 hours               2.425

20GB      1             	1             720x240(20KB)     	291 hours                12.1

20GB      1             	15           360x240(10KB)     	38.8 hours           	1.6

20GB      1             	5             360x240(10KB)     	116.5 hours           	4.85

20GB      1             	1             360x240(10KB)     	388 hours                16.1

Application:

1.Architecture

2.Intelligent Recording

3.Mechanical Consideration

4.Smart File Backup

5.Easily Control

6.Audio Recording
