SECURITEX WIRELESS HANDHELD DATA AUTHENTICATION SYSTEM




Down load system brochure

GENERAL DESCRIPTION

The SECURITEX Wireless Portable Hand Held Reader system consist of 5 parts.

Interface A (1) is install in the Hand Held Reader system.

The Controller interface B (2) is at the Securitex Controller unit.

Then the Securitex controller (3)

Followed by the USB to 485 converter (4)

and ending at the system software (5).

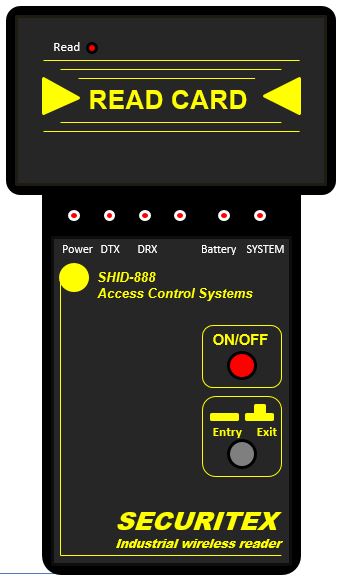

Hand Held unit c/w charging adapter and backup battery. Full supervision of the hand held unit and event signals including supervision failure, tamper, low battery and power loss of the hand held unit is reported to the Securitex Controller through the Controller Interface B Unit.



Bi-directional RF communication with data protection uses fast proprietary, anti-collision and rolling code protocol; narrow band RF provides high reliability of the wireless link on regular ISM bands.



With the handheld device. The Security officer can register or check the credential and authorization status of the personnel from a distance away from the guard post.



Or can be integrated to can card authentication system to check on the personnel status.



Reliability

Extremely reliable communication result is achieve by using the 433MHz Spread Spectrum technology which enables high transmission power in a license-free band.



Easy to Use

The security officer simply present the user card on the handheld reader and within less than one second a reply is given visually and audibly. It will either approved with a Green LED and a buzzer sound or if the card is deny there will be no reaction on the handheld reader.



MAIN FEATURES

·          Maximum range of 50 meters indoors and up to 200 meters outdoors with an external fixed antenna, depending on RF related

environmental conditions.



·          Overall response time of 500ms when used with Roger controller and HID. Response time depends on RF link quality, the number of

handheld unit use and the controller and reader’s response time.



·          External battery charger for charging the Hand held internal battery.



·          Compatible with all of the 3rd party card and Pin reader with standard Wiegand Format.



·          Handheld Case tamper protection. Tamper events from either the handheld unit or the controller interface B side are reported using a

tamper output on the Controller interface B to the Roger Controller.





PROFESSIONAL GRADE FEATURES

·          Transfer of proximity card information, LED control, case tampering, Entry and Exit Algorithm. Hand held internal relay command, Unit

on / off, low battery or handheld under charge events can be achieve between the hand held and the Controller Interface B unit.



·          The Controller Interface B unit is powered using the Securitex controller's power supply. The hand held unit is powered by a local

power charger adapter and the built-in rechargeable battery.

·          Available in 869 MHz and 433 MHz bands



SPECIFICATIONS ELECTRICAL SPECIFICATIONS

Operating Voltage Range



Handheld unit: 12–24 V, 15–24 VDC

Controller Interface B unit: 13.8 VDC from controller's power supply/wall adapter

Input Current, Max



Standby: 80 mA

Maximum: 180 mA

Battery Charger

12 V Lithium 2000MA (handheld unit)

OPERATIONAL SPECIFICATIONS

Maximum Range



Indoors: 50 m, Outdoors: 200 m

Range depends on RF related environmental conditions

Response Time



Up to 500 ms with Securitex controllers and EM or HID 125K readers. Response time depends also on RF link quality, handheld used and the type of controller and reader response time

Output Relays (optional)



Handheld unit: One 5 A Form-C relay

Controller Interface B unit: Two 1 A Form-C relays

Output Types

Dry contact and open collector

Communications



Bi-directional RF, narrow band. Fast anti-collision rolling code protocol with data protection. Available in 869 MHz and 433 MHz bands, with four selectable channels

Data Transfer



Card and PIN, Status Command, Reader switch from Entry to Exit command, Sensor monitor, LED control and reader tamper etc.

Supervisory & Alerts



Full supervision over the Handheld unit

Alert outputs at the Controller Interface B unit for supervision failure, system tamper, reader tamper, low battery, and power failure etc.

Supported Card transmission formats



Wiegand 26-, 32- ,34- , and 40-Bit, 26-Bit with Facility code, 32-Bit Reverse

Supported PIN code formats



Single key Wiegand 6-Bit (Rosslare format with parity), Single key Wiegand 8-Bit, 4 keys binary Wiegand 26-Bit, 1 to 5 keys, Wiegand 26-Bit, 6 keys BCD and parity bits

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

-10°C to 50°C (14°F to 122°F)

Operating Humidity

0 to 95% (non-condensing)

Operating environment

Indoor use for the Controller Interface B unit



Outdoor use for the handheld Device



For more detail on the system please contact sales@securitex.com.sg
