SECURITEX HAS BEEN IN BUSINESS SINCE 1997

SECURITEX ELECTRONIC SYSTEMS ENGINEERING (International gate automation division)



FAAC automatic gate operator and system is one of the best and the most reliable equipment ever been developed. Securitex is proud to bring this Supreme quality product to you. This equipment can be used in almost any manual gate. FAAC has system as small as can be install on a small door to as big as those installed in Palaces gate around the world to even huge solid metal door weighing up to 3500kg. More importantly when you get the FAAC gate system, you not only have the best system, you are guarantee service and maintenance up to the manufacturer level. We at Securitex will ensure that any one who uses the FAAC gate system can request a service from us to assist in getting their gate back in operation if it ever fail. If we are not able to solve the problem we will put you to the nearest international service center to assist you.

FAAC    SECURITEX

SWING GATE OPERATORS:
  • Residential and commercial models
  • Hydraulic and electromechanical versions
  • On-gate and In-ground versions
  • Models: 400 | 402/422 | 412 | 750 | 760
    		• SLIDE GATE OPERATORS:
  • Residential and commercial models
  • Chain and rack & pinion versions
  • Continuous duty and integrated safety systems
  • Models: 746 | 748 | 820 | 844 | 860 | 885
    		• BARRIER GATE OPERATORS:
  • High speed, 100% continuous duty models
  • Models to move beam lengths up to 23 feet
  • Economy models
  • Models 615 | 620R | 620S | 640
    		• ACCESS CONTROL ACCESSORIES:
  • Entry systems and devices
  • Safety and security devices
  • Electrical and hardware accessories
  • radio transmitters | solar panels | photocells | photo beam
    |warning lights | timers | other
    • Gate operator installations should be completed by a qualified installer only. Securitex Electronic Systems Engineering will be able to assist the architect, designer, installer and owner to choose the right operator and control panel for their gate. For more information please see owners / installation manual for further details.

    MODEL 400 HEAVY DUTY SWING GATE OPERATORS

    THE MODEL 400 heavy duty hydraulic swing gate operator is specifically designed for situations needing maximum versatility, such as apartment, subdivision, commercial/industrial and certain residential applications. It's strength also makes the 400 ideal for ornate gates. Model 400 has 2 year limited warranty
    FAAC 400 KITS INCLUDE:

  • one or two hydraulic gate operators with mounting hardware

  • one 455D control panel

  • one 14 x 16 in. weather resistant UL Listed fiberglass enclosure

  • two photo beam sets for opening and closing reversing devices

  • one or two manual release keys

  • one plug-in radio receiver

  • two radio transmitters

  • 115 VAC receptacle for accessories (5 amp max.)

  • ON/OFF switch controlling power to control panel, accessories and

    plug outlet

  • Large pre-wired terminals for easy wiring to control panel

  • Test button

  • Two or four warning signs
    FEATURES:

  • Operator is mounted inside the gate but still allows gate to open to the inside or outside

  • The versatile FAAC control panel allows for six operating modes, including garage-door-like operation and a HOLD OPEN function

  • Available hydraulic locking of the gate in position

  • Adjustable hydraulic pressures to control swing

  • Minimized pinch point

  • Quiet operation

    • PRODUCT & INSTALLATION BROCHURE FAAC 400

    INSTALLATION MANUAL FAAC 400

    MODELS 412 ELECTROMECHANICAL SWING GATE OPERATORS

    MODEL 412 electromechanical swing gate operator is designed for light duty, single family residential use.
    MODEL 412 KIT INCLUDES:


  • One control panel which operates single leaf or bi-parting gates

  • One 14 x 16 in. weather resistant UL Listed fiberglass enclosure

  • Two photo beam sets for opening and closing reversing devices

  • One plug-in radio receiver

  • Two radio transmitters

  • Two batteries and plug-in transformer (Model 412 Low Voltage only)

  • Four warning signs

  • A solar kit is available for the Model 412 Low Voltage
    MODEL 412 FEATURES INCLUDE:

  • UL 325 compliant

  • "Slow Down" convenience

  • Self-Learning Program

  • Mechanical locking in the opened and closed position

  • Electronic anti-entrapment

  • Convenient manual release

  • Easy integration of loop detectors, photo cells

  • Easy interconnection of actuating devices like remote control radios, key pads and Telephone Entry Systems
    When you are facing the gate from the side on which the operator will be mounted:

  • if the HINGE is on the RIGHT SIDE, a DX OPERATOR is required

  • if the HINGE in on the LEFT SIDE, a SX OPERATOR is required

    • PRODUCT & INSTALLATION BROCHURE FAAC 412

    INSTALLATION MANUAL FAAC 412

    MODEL FAAC415 & FAAC415L

    		 FAAC415 & FAAC415L is the best swing arm in this class or swing gate system. Click below for more detail.

    http://www.securitex.com.sg/Securitex_Manual_FAAC415-415L-230v-24v.pdf

    http://www.securitex.com.sg/Securitex_FAAC415L_12_DataSheet_rad3ED6A.pdf

    http://www.securitex.com.sg/Securitex_FAAC415_Description_Installation_Safety&Operation.pdf

    MODELS 402/422 HYDRAULIC SWING GATE OPERATORS

    MODELS 402 AND 422 hydraulic swing operators are designed for light-duty ( single family residential use ) and are not recommended for solid gates.
    FAAC 402 & 422 KITS INCLUDE:

  • One or two hydraulic gate operators with mounting hardware

  • One 455D control panel

  • One 14 x 16 in. weather resistant UL Listed fiberglass enclosure

  • Two photo beam sets for opening and closing reversing devices

  • One or two manual release keys

  • One plug-in radio receiver

  • Two radio transmitters

  • 115 VAC receptacle for accessories (5 amp max.)

  • ON/OFF switch controlling power to control panel, accessories and plug outlet

  • Pre-wired motors to terminal strip

  • Pre-wired for high voltage

  • Test button

  • 2 or 4 warning signs
    MODEL 402 FEATURES INCLUDE:
    Designed for basic single family residential use| Can move a 900 pound gate leaf 90 degrees in 12 seconds | Hydraulic locking in the opened or closed positions| A convenient manual release is standard | A battery back-up unit is available
    MODEL 422 FEATURES INCLUDE:
    Designed for demanding single family residential use | Can move a 900 pound gate leaf 90 degrees in 12 seconds | Hydraulic locking in the opened and/or closed positions | A convenient manual release is standard | A battery back-up unit is available | A high-speed version of the 422 is available for pedestrian gates

    • PRODUCT & INSTALLATION BROCHURE FAAC 402

    INSTALLATION 402 MANUAL   INSTALLATION 422 MANUAL

    MODELS 750 "INVISIBLE" HYDRAULIC SWING GATE OPERATORS

    MODEL 750 in-ground hydraulic swing gate operator is designed for underground installation in residential and light commercial applications.
    MODEL 750 KITS INCLUDE:

  • One or two pump motor assembly

  • One or two drive units with metal enclosure and top

  • One or two 33 ft lengths of flex hose & one or two connector kit

  • One or two foundation plates

  • One 455D control panel

  • One 14 x 16 in. weather resistant UL Listed fiberglass enclosure

  • Two photo beam sets for opening

  • One or two manual release keys

  • One plug-in radio receiver

  • Two radio transmitters

  • 115 VAC receptacle for accessories (5 amp max)

  • ON/OFF switch controlling power to control panel, accessories and plug outlet

  • Pre-wired for dual photo beams - open and closing reversing devices

  • Pre-wired motors to terminal strip

  • Pre-wired Open/Hold Open contacts

  • Test button

  • Two or four warning signs
    MODEL 750 FEATURES INCLUDE:
    Model 750 gate operators feature Gentle Swing™ Motion Management which features include: hydraulic actuation, adjustable hydraulic pressures to control swing, minimized pinch points, available hydraulic locking of the gate in position, quiet operation, self lubricating for long time | The drive unit is set in the ground while the pump unit is above the ground | Equipped with a hydraulic bypass for extra anti-entrapment protection | Convenient manual release is standard

  •

    • The Model 750 Hydraulic Actuator consists of a control panel and four hydraulic component groups:

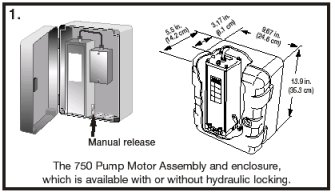

    1. The 750 Pump Motor Assembly and enclosure which is available with or without hydraulic locking
    2. Flexible Hydraulic Hose and a Connector Set needed to connect The Pump Motor to the Drive Unit
    3. The 750 Drive Unit (with metal enclosure and top) available in both 110° or a 180° swing version
    4. Foundation Plate on which the Drive Unit is placed

    PRODUCT & INSTALLATION BROCHURE

    INSTALLATION MANUAL

    746 Residential and light Commercial

    Designed for residential and light duty commercial applications. Features GentleSlide™ Motion Management. Choice Of chain or rack & pinion. Available with or without installation kit.

    FAAC 746 brochure        FAAC 746 installation Manual

    820 Standard & Continuous Duty

    Designed for moderate pulling force requirements in high traffic applications. Features GentleSlide™ Motion Management. Choice Of chain or rack & pinion. Available with or without installation kit.

    FAAC 820 brochure        FAAC 820 installation Manual

    860 Continuous Duty

    Designed for high pulling force requirements in high traffic applications. "Soft Stop" on opening and closing. Easy Connection with access control devices. Choice Of chain or rack & pinion.

    FAAC 860 brochure        FAAC 860 installation Manual

    844 Limited Duty Industrial





    Designed for limited duty industrial applications. "Soft Stop" on opening and closing. features Oil Immersed Clutch. Choice Of chain or rack & pinion. Available with or without installation kit.

    FAAC 844 brochure        FAAC 844 installation Manual

    885 Residential And Commercial

    Designed for both residential and commercial duty applications. "Soft Stop" on opening and closing. Choice Of chain or rack & pinion. Available with or without installation kit.

    FAAC 885 brochure        FAAC 885 installation Manual

    FAAC844ER industrial sliding gate system.

    http://www.securitex.com.sg/Securitex_FAAC844er-brochure.pdf



     MODEL 746 RESIDENTIAL & LIGHT COMMERCIAL SLIDE GATE OPERATORS (1/2 HP)

    THE MODEL 746 is designed for residential and light duty commercial applications. Available in chain and rack&pinion versions. 1/2 HP motor features Gentle Slide™ Motion Management. Model 746 has 2 year limited warranty
    MODEL 746 CHAIN KITS INCLUDE:

  • Operator

  • Control panel (746 MPS)

  • Sprocket

  • Idlers and protective cover

  • Easy install limit switch plates

  • Mounting angle brackets

  • chain-to-gate mounting hardware with nickel plated master links

  • Chain is not included (Installation kits available)
    MODEL 746 RACK & PINION KITS INCLUDE:

  • Operator

  • Control panel (746 MPS)

  • Pinion

  • Mounting angle brackets

  • Limit switch plates

  • Rack is not included (Installation Kits available)
    FEATURES:

  • Gentle Slide™ Motion Management

  • External limits

  • Manual release (non-keyed)

  • 230 VAC

  • "Soft Stop" on opening and closing

  • 1/2 hp motor

  • Duty Cycle: 50% motor run time

  • Microprocessor Control:

    Choose from two models:

    a) signal open, signal closed

    b) automatic logic

    •   MODEL 820 STANDARD AND CONTINUOUS DUTY SLIDE GATE OPERATORS (1/2 HP)

    SECURITEX

    THE MODEL 820 is designed for moderate pulling force requirements in high traffic applications applications. Available in chain and rack&pinion versions. Model 820 has 2 year limited warranty
    MODEL 820 CHAIN KITS INCLUDE:

  • Operator

  • Control panel (826 MPS)

  • Sprocket

  • Idlers and protective cover

  • Leveling hardware

  • chain-to-gate mounting hardware with nickel plated master links
    MODEL 820 RACK & PINION KITS INCLUDE:

  • Operator

  • Control panel (826 MPS)

  • Pinion

  • Leveling hardware
    FEATURES:

  • Gentle Slide™ Motion Management: Oil immersed clutch and electronic clutch which when properly adjusted, will sense an obstacle to gate travel. Upon sensing an obstacle when the gate is closing, the operator will move the gate to the open position. Sensing an obstacle upon opening will cause the gate to s

  • top. The gate will not move again until external activation signal is received.

  • Continues duty operation

  • Internal limit switches

  • "Soft Stop" on opening and closing

  • 1/2 hp motor

  • Manual release (non-keyed standard)

  • Selectable delayed opening and closing (to allow for warning light activation)

  • Microprocessor Control:

    Choose from 8 operating models:

    a) 2 kinds of garage-door-like logic (signal to open, signal to close)

    b) 2 kinds of automatic logic (signal to open, then close after selectable time period

    c) 2 kinds of security logic (for anti tailgating)

    d) 2 kinds of logic for an attended gate

    • SECURITEX AUTOMATION DIVISION SINGAPORE

    FAAC Equipment







    PRODUCT & INSTALLATION BROCHURE FAAC 820                                                       INSTALLATION 422 MANUAL

      MODEL 844 844 LIMITED DUTY INDUSTRIAL SLIDE GATE OPERATORS (3/4 HP)

    THE MODEL 844 designed for limited duty industrial applications. Available in chain and rack&pinion versions. Model 844 has 2 year limited warranty
    MODEL 844 CHAIN KITS INCLUDE:

  • Operator

  • Control panel (844 MPS)

  • Sprocket

  • Idlers and protective cover

  • Easy install limit switch plates

  • Mounting angle brackets

  • Chain-to-gate mounting hardware with nickel plated master links

  • Chain is not included
    MODEL 844 RACK & PINION KITS INCLUDE:

  • Operator

  • Control panel (844 MPS)

  • Pinion

  • Mounting angle bracket

  • Limit Switch plates
    FEATURES:

  • 230 VAC

  • External limits

  • Manual release (non-keyed)

  • "Soft Stop" on opening and closing

  • 3/4 hp motor

  • Oil immersed clutch which, when properly adjusted , limits the amount of pressure the operator can apply to moving gate

  • Duty Cycle: 30% motor run time

  • Microprocessor Control:

    Choose from 4 operating models:

    a) signal to open, signal to close

    b) automatic logic

    c) security logic

    c) S2 security logic


    PRODUCT & INSTALLATION BROCHURE FAAC 844       FAAC 844 installation manual

    •   MODEL 860 CONTINUOUS DUTY SLIDE GATE OPERATORS (3/4 HP)

    THE MODEL 860 designed for high pulling force requirements in high traffic applications. Available in chain and rack&pinion versions. Model 860 has 2 year limited warranty
    MODEL 860 CHAIN KITS INCLUDE:

  • Operator

  • Control panel (826 MPS)

  • Sprocket

  • Idlers and protective cover

  • Leveling hardware

  • Chain-to-gate mounting hardware with nickel plated master links
    MODEL 860 RACK & PINION KITS INCLUDE:

  • Operator

  • Control panel (826 MPS)

  • Pinion

  • Leveling hardware
    FEATURES:

  • Continuous duty operation

  • 230 VAC

  • Internal limit switches

  • Manual release (non-keyed standard)

  • "Soft Stop" on opening and closing

  • 3/4 hp motor

  • Selectable delayed opening and closing (to allow light activation)

  • Microprocessor Control:

    Choose from 8 operating models:

    a) 2 kinds of garage-door-like logic (signal to open, signal to close)

    b) 2 kinds of automatic logic (signal to open, then close after a selectable time period

    c) 2 kinds of security logic (for anti-tailgating)

    d) 2 kinds of logic for an attended gate

    •

    PRODUCT & INSTALLATION BROCHURE FAAC 820/860

    INSTALLATION FAAC 820/860 MANUAL

      MODEL 885 CONTINUOUS DUTY SLIDE GATE OPERATORS (1 HP)


    shown with
    optional pedestal

    THE MODEL 885 is designed for both residential and commercial applications. This sophisticated 1 horsepower, chain driven, 115 VAC operator can handle a 35 foot entrance opening and a maximum gate weight of 1800 pounds. Model 885 has 2 year limited warranty
    MODEL 885 FEATURES INCLUDE:
    UL 325 compliant, continuous duty operation, fully programmable via push button, provides "soft stop" on opening and closing, reverse on contact, full 1 hp motor, chain driven, electronic anti-entrapment clutch with wiring, manual release has fail-safe or fail-secure capabilities, plug-in loop detectors simplify wiring, three operating logics to choose from, master slave capabilities, battery back-up optional
    MODEL 885 PACKAGE OPTIONS:
    1. OPERATOR-ONLY PACKAGE (for replacement purpose or if installer is supplies chain)

  • One 885 Operator with control panel & mounting hardware (includes chain-to-gate kit)
    2. BASIC PACKAGE

  • One 885 Operator with control panel & mounting hardware

  • 30 ft of chain-to-gate kit

  • One photo beam set for opening and closing reversing device

  • Two warning signs
    3. LOOP DETECTOR PACKAGE

  • One 885 Operator with control panel & mounting hardware

  • 30 ft of chain-to-gate kit

  • Two Loop detectors (plug-in): 1 free exit, 1 safety

  • One photo beam set for opening and closing reversing device

  • Two warning signs
    3. LOOP DETECTOR PACKAGE

  • One 885 Operator with control panel & mounting hardware

  • 30 ft of chain-to-gate kit

  • Two Loop detectors (plug-in): 1 free exit, 1 safety

  • One photo beam set for opening and closing reversing device

  • Two warning signs
    4. BATTERY BACK-UP PACKAGE #1 (without loop detectors)

  • One 885 Operator with control panel & mounting hardware

  • 30 ft of chain-to-gate kit

  • One battery back-up set

  • One photo beam set for opening and closing reversing device

  • Two warning signs
    5. BATTERY BACK-UP PACKAGE #2 (with loop detectors)

  • One 885 Operator with control panel & mounting hardware

  • 30 ft of chain-to-gate kit

  • One battery back-up set

  • Two Loop detectors (plug-in): 1 free exit, 1 safety

  • One photo beam set for opening and closing reversing device

  • Two warning signs

    •  FAAC INTERNATIONAL BARRIER GATE OPERATORS

    615 Hydraulic Barrier Gate Operator


    FAAC 612

    An economy operator for medium length beams designed for light - medium traffic situations, 50% duty cycle

    FAAC 612 barrier brochure               FAAC 612 barrier installation manual

    640 Hydraulic Barrier Gate Operator


     FAAC 640

    Designed for heavy traffic situations, wide entrances that require long beams (up to 23 ft), 100% duty cycle

    FAAC 640 barrier brochure               FAAC 620/640 barrier installation manual

     MODEL 615 BARRIER GATE OPERATORS (1/3 HP)

    THE MODEL 615 is designed for light to moderate traffic applications, and features Gentle Swing Motion Management. The 615 is ideal for certain residential and commercial uses. Model 615 has 2 year limited warranty
    Easy to Maintain. Maintenance could not be simpler and diagnostic checks are immediate thanks to the input LEDs. Like all FAAC hydraulic operators, the 615 is completely self-contained for reliable operation.
    MODEL 615 FEATURES INCLUDE:

  • Adjustable hydraulic pressures to control swing

  • Hydraulic open & closed locking positions

  • External key-operated manual release

  • Simple interface with revenue control system

  • Powder coated steel cabinet

  • Versatile model 455D control panel

  • Quiet operation
    ALL 615 MODELS REQUIRE FOLLOWING:

  • Assembly of the beam

  • Assembly of the beam's counterbalancing system
    OPERATING LOGISTICS:
    E - Garage door-like logic (signal to open signal to close)
    A - Automatic logic (one signal opens the gate and closes it after a timed pause)
    S - Security logic (much like the A logic, use full in high traffic applications to counter tailgating)
    EP - Semi automatic logic (signal to open the gate, second to stop it, third reverses gate)
    B - Manned, pulsed logic (designed for guard station use, requires 3-button switch (pulsed) to open, close and stop the gate)
    C - Manned, constant logic (similar to B logic, but 3-button switch requires constant pressure on each button)


  • FAAC 615 barrier brochure               FAAC 615 barrier installation manual


    • skirted beam available


    articulated beam available

    PLEASE NOTE: when ordering you need to specify the length and type of beam you plan to install so the correct counterbalancing springs can be shipped.

      MODEL 620 BARRIER GATE OPERATORS

    THE MODEL 620 is designed specifically for traffic control applications that require extremely fast opening and closing times. When used with an aluminum beam of 8 1/2 feet or less, the 620 has an opening time of under 2 seconds and a 100% duty cycle. The 620 can also operate a wooden beam up to 16 feet in less than 3 seconds.
    Model 620 has 2 year limited warranty
    Flexibility Outstanding flexibility make the 620 the most complete barrier in its class. The 620 can be equipped with an articulated beam for use under low ceilings and can be outfitted with a skirt to stop unauthorized entry under the barrier arm.
    MODEL 620 FEATURES INCLUDE:

  • Continuous duty operation

  • Adjustable hydraulic pressure to control swing

  • Pre-assembled counterbalance

  • Automated fan cooling on all models

  • Model 624 MPS control panel

  • Quiet operation
    OPERATING LOGICS:
    E - garage door-like logic (signal to open, signal to close)
    AS - automatic logic (one signal opens and than closes the gate after timed pause)
    P - for parking applications (requiring separate open and close controls, use full in retrofitting parking barrier gate applications
    R - master slave


  • FAAC 620 Rapida barrier brochure    FAAC 620 Standard barrier brochure    FAAC 620 barrier installation manual


    • available white cabinet



    PLEASE NOTE: you MUST know the orientation of your barrier when ordering MODEL 620

      MODEL 640 BARRIER GATE OPERATORS

    THE MODEL 640 is the ideal hydraulic barrier for controlling heavy traffic at wide entrances when long beams are needed. The 640 operates continuously, raising aluminum beams from 13 to 23 feet long in as little as 4 to 7 seconds.
    Model 640 has 2 year limited warranty
    Perfect Behavior The 640 always stops smoothly and gently, thanks to an adjustable electronic braking system which slows the beam down before the end of its travel when opening and closing. A heat sensor monitors the operator temperature, switching on a cooling fan when required.
    Flexibility The 640 can be outfitted with a skirt to stop unauthorized entry under the barrier arm.
    MODEL 640 FEATURES INCLUDE:

  • Continuous duty operation

  • Adjustable hydraulic pressures to control swing

  • Pre-assembled counterbalance

  • Automated fan cooling on all models

  • Pause time selections

  • 4 different operating logics

  • Selectable warning light logic

  • Quiet operation
    OPERATING LOGICS:
    E - garage door-like logic (signal to open, signal to close)
    AS - automatic logic (one signal opens and than closes the gate after timed pause)
    P - for parking applications (requiring separate open and close controls, use full in retrofitting parking barrier gate applications
    R - master slave
    FAAC 640 barrier brochure               FAAC 640 barrier installation manual

    • PLEASE NOTE: you MUST know the orientation of your barrier when ordering MODEL 640

    The above FAAC logo, trademark, image literature, write out, text, drawing etc belong to FAAC USA and FAAC

    Securitex Electronic Systems Engineering
