The above system 3G device use in the SLWACS & SDMAS
is no longer IMDA Type Approved (Reg No: S0231-17) as Singapore have cease
the 3G network, however this 3G system can still be use in countries that
have the 3G network.
For Singapore the 4G LTE system IMDA Reg number will
be
2657-24

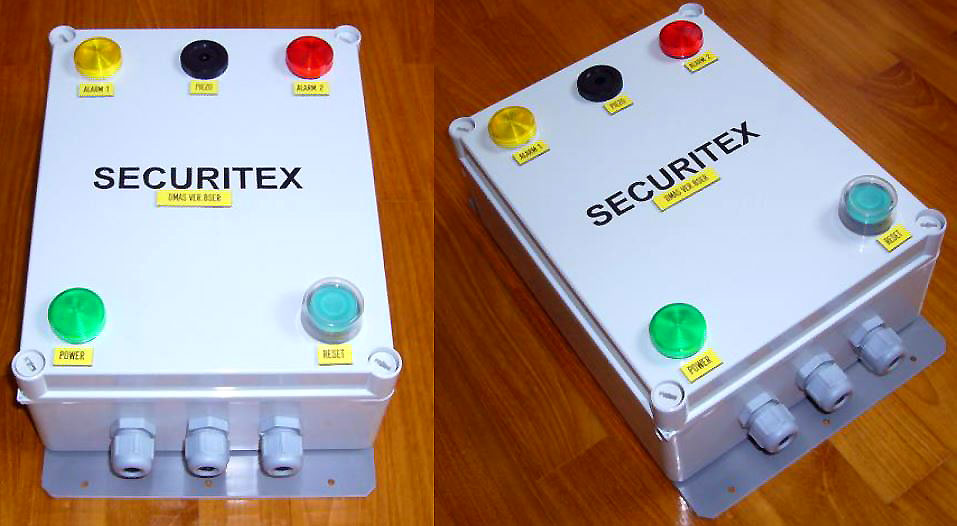

Securitex Lone Worker Automatic Check System
(SLWACS-88). 3G Version with SMS controller built-in
The Securitex Lone Worker Automatic Check System is developed
to ensure that engineers, scientist, technician, operator and crew working
alone or as a group in remote area like, laboratory, reactor room, confined
area like tunnel, spray paint cabin, tank cleaning. bridge, engine room,
boiler room and even monitoring certain equipment in ship, vessel, security
control room etc.
To constantly automatic informed the control room that they are in
good condition, well and safe. The Lone Worker MASTER Control Unit
[LW-MCU] will at a preset time trigger an alarm that requires the personnel
[working crew] on duty to reset the alarm thus indicated that he or she is
well, if this activated alarm is not acknowledge after a preset time say
10 - 15 minutes, the second alarm will be set off at the monitoring office
either by hard cable or via 3G SMS or to the Monitoring Officer Mobile Phone
or Security Office. When this second alarm triggers, normally it indicated
that something might have happen at the area of work that will requires
immediate attention by the monitoring officer in charger.
The LW-MCU-C4 ver1. also can be
designed and configured to receives external duress signal through the 3G
and 4G network. Meaning if this version of the panel is installed in the man
control room. It can receive.
1.. Fire alarm system activation signal.
2. Chemical storage room chemical leak
activation signal.
3. Aviation hanger security breach activation
signal.
4. Cold room temperature compromised due to
sensor failure or power trip activation signal.
5. Incinerator or Reactor run away temperature
activation signal.
6. Critical Medical system malfunction
activation signal.
and the list goes on.......
When such activation signal is activated the
system will transmit the signal to the Man Control Room so that immediate
deployment of manpower to the affected site can be achieve.
The Securitex Lone Worker Automatic Check system consist of
the following
a. SLWACS-88 Master control unit c/w 1 built-in reset switch
with light and 2 unit siren locator buzzer with light when activated.
b. 1 unit primary motor horn siren OUTPUT 12VDC
c. 1 unit secondary motor horn siren OUTPUT 12VDC
d. 2 units remote location reset switch INPUT DRY CONTACT
e. 1 unit 3G SMS Controller c/w input and output control module.
Operation
By default the system is preset at 15 minute for the first alarm, if
at anytime the reset button is push. The system will reset to 15 minute
again. However if the first alarm is not acknowledge the LW-MCU will give
out a buzzer sound continuously together with the primary siren. This will
go on for another 10 minute and than the secondary siren will activate (All
this timing duration can be preset and reprogrammed at site). To deactivate
the siren the Monitoring officer have to press the reset switch on the
LW-MCU or any reset switch that are installed and integrated on the LW-MCU
and both alarm will goes off. The cycle will than repeat again…..
Technical Specifications : Series A100-220/12.238.2008.V8
Description Specification Application
Supply voltage (Switching Power supply):110VAC-230VAC
Supply current:40mA to 80mA
Relay 1:12VDC-Primary (Baby) siren
Relay 2:12VDC-Secondary (Master) siren
Relay switching capability: Up to 28VDC and 12Amp
Option for dry contact: Depend on version-Relay 1 & 2 activated output
(Voltage) 12VDC SIREN
Reset button 1: Fitted on the DMAS Reset button provided on system.
Reset button 2: Connector provided (only) Not provided
Reset button 3: Connector provided (only) Not provided
Gross Dimension of DMAS: 250mm X 175mm X 75mm
Securitex LW-MCU 3G & 4G LTE SMS CONTROLLER
Features:
Specifications (3G system)
3G Band 900/2100MHz default
850/1900MHz *
850/2100MHz *
STRU5025W-IG
3G
3G-WCDMA-900/2100Mhz UMTS
Digital
Input 2
NC/NO dry contact
Digital
Output 1
Relay, 3A/240VAC, 5A/24V DC
Siren
Output
12VDC/1A
DC Power
supply
9~24VDC/2A
Power
consumption
12V input Max. 50mA/Average 25mA
SIM Card
Support 3V
SIM Card
Antenna
50 Ω SMA
Antenna interface
Temperature range -20~+60 °C
Humidity
range
Relative humidity 90%
Backup
battery (Built-in) 3.7V/900mAH
Authorized user Up to 999 authorized phone numbers can be configured at the
specified time for access control.
No Call
Charge No
call charges. Reject calls from authorized number then carries out the turn
ON/OFF action on the first 'ring‘.
Secured
Using Caller-ID for verification, unknown phone calls are ignored.
SMS
confirmation
SMS confirmation of relay actions (door open) to the owner or authorized
caller number.
Logging
Up to 1000
events log, download the operation historical data by USB or over GPRS.
Exterior
dimension
W150*D74*H27 mm
Net
Weight 260 g
|
Specifications (4G LTE system) |
| |
|
Administrator Control |
Up to 5 |
|
Users
database & Control |
Up to
2000 |
|
Power
supply requirement |
10-24V
50Hz/ 60Hz ~ 500mA max / 10-24V 500mA max |
|
SIM
card type |
Nano-SIM |
|
Current consumption in idle state w/o external devices connected |
up to
50mA |
|
S-LTE320IG / ESIM320-4G Q |
4G(LTE)
(28)700/ (20)800/ (8)900/ (3)1800/ (1)2100/ (7)2600 MHz; |
|
Number of inputs |
3 |
|
Number of outputs |
2 |
|
Output type |
Relay |
|
Maximum commuting output values |
24V 50Hz
~ 0,5A / 24V 1A |
|
Event
Log |
up to
1000 events |
|
Dimensions |
87×107×29 mm |
|
Operating temperature range |
-20…+55
°C |
|
Humidity |
0-90% RH
@ 0… +40°C (0-90% RH @ +32… +104°F) (non-condensing) |
How can we get this system for our facility
As the Securitex Lone Worker Automatic Check (SLW)
& Deadman Alarm System (DMAS) is
fully customized and developed for different application and different
premises, customer can write in to
sales@securitex.com.sg or call 67852171 or WHATSAPPS 90213896 to speak to our technical
designer director and he will advise and explain in more detail how the
system can be applied in your operation.
For more information or
specifications on Securitex Lone Worker Automatic Check System
sometime also refer to as (DEADMAN ALARM SYSTEM) please contact:
