Securitex Electronic Systems Engineering  (Auto gate Division)
Block 9010 Tampines St 93 #04-145 Tampines Industrial Park A Singapore 528844.

Tel: 67852171 Fax: 65850107. sales@securitex.com.sg

AUTOMATIC SLIDING GATE SYSTEM. CAME. FAAC. TELCOMA. RANGER. RIB.

OVERVIEW.

This sliding gate operator are used to drive sliding gate for industrial, commercial and residential application. The operator can be fitted with gear wheel according to your needs and features with powerful starting strength, capable of overwork at short time. In case of power failure an emergency release key allows operation of the gate manually. This sliding motor has been around since 1990 and till today some of this old system is still in operation. As the gearbox is running in oil the wear and tear is minimum. The Master Control Panel for the Sliding gate is designed with multiple function to allows user to add safety beams and remote control to the sliding unit.

AUTOMATIC SLIDING GATE SYSTEM.

Sliding Gate Automatic System

Power supply : 220VAC +/- 10% 50 Hz Noise : <6 db
Motor Speed  : 1400 rpm Gear Drive
Operating Thrust : 370N The self-locking electromechanical gear motor keeps the gate completely closed  motor torque adjustment.
Maximum weight of gate : 1600kg Emergency release key in case of power failure.
Opening Speed : 12 meters / minute       Heat protection and weatherproof.



External dimension: 260mm(L)x150mm(W)x240(H) Weight 18kg                           External dimension: 310mm(L)x250mm(W)x60(D) Weight 1.8kg

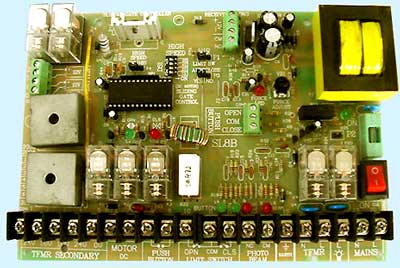

State of the art micro-computer controller

Auto-reverse on closing if it hits an obstacle. LED indications for easy installation and fault diagnosis.
Stopping on opening if it hits an obstacle. Photo electric beam control input available.
Control to stop immediately at any time when gate is moving. Adjustable forcing sensing trimmer.
Limit switch N.C/N.O selectable (using micro-switch) Automatic lighting control with optional   photo sensor.
Dual lighting mode control Follow or delay selectable

Autogate Remote Control System

The above auto gate remote control is a low cost device that can be incorporated into the Sliding gate Controller to allow user to use the remote transmitter to operate the gate system. With this kind or remote control, there is no limit to the number of transmitter that can be added to the system.

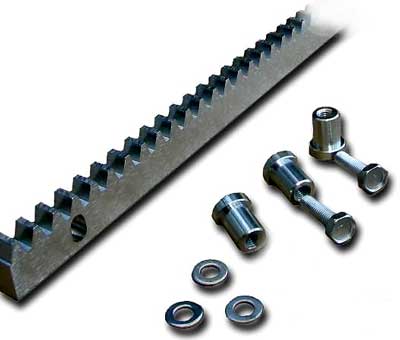

Gear Rack

Module = 4 units. Finish: Galvanized
Quantity: 4 pieces in 1 carton Dimension: 1005mm x 30mm x 12mm
Include limit switch cut off plate Weight: 10kg

To purchase contact: sales@securitex.com.sg
