TOA-A-230HV TOA Package Amplifier
Securitex Garden
Sound system by TOA
Having a beautiful home c/w a lush
garden or even a small garden where you spend a lot of time, home owner
may want to consider installing garden sound system but not sure how to
start. Out door sound system is a very relaxing way to listening to
music while tending to your plants, just lazing in the garden or patio
and even attending to your KOI fishes in the garden pond and
entertaining guest in the garden party. SECURITEX-TOA GS-302
outdoor speakers are made exactly to give you that kind of listening
pleasure yet it blend extremely well with
the garden surroundings. Once installed you'll never know there's a speaker in the
garden until you hear it play music or song its like music and song
coming from everywhere. Installing outdoor speakers in the garden is
trickier than what most people think especially if the wrong speakers
are chosen but with SECURITEX-TOA GS-302 you can never go
wrong. Speakers cabling although some digging will be required to
bury the speaker cables and it may be necessary to route this cable
around or beneath obstacles, such as concrete walkways or raised garden
beds and also to bring this cable to the amplifiers and the CD player
etc home owner can also chose to have the cable neatly laid in the
garden hidden within the grass and plants for easy relocation of the
speakers.
SECURITEX ELECTRONIC
SYSTEMS ENGINEERING is able to assist home owner to designed and
configured a Garden Sound System to meet your garden size, be it a 20 sq ft
garden or 2000 sq ft garden we have the exact system for you. The
TOA GS-302 is also very good for Back Ground Music (BGM)
application. The speakers can be use to play back ground music, songs
and even to be use with the public address system for broadcasting etc
in huge open area like public park.
We only use
SECURITEX-TOA Music System equipment for background and foreground to
designed, supply and install for our client as this sound system has
been tested to be extremely reliable and heavy duty in the harsh garden
setting where its usually damn, wet and some time hot etc. The
SECURITEX-TOA GS-302 outdoor speakers are built to satisfy the
requirement for stylish and attractive designed that can be installed in
a variety of demanding environment that pose considerable difficulties
for conventional speakers. The SECURITEX-TOA GS-302 offer a
very highly
reliable performance that also fully satisfy the IPX4 requirements for
environment with exposure to water. This speakers can be install in
Botanic Gardens, Zoo, Public Parks, Nature reserve and of course home
garden.

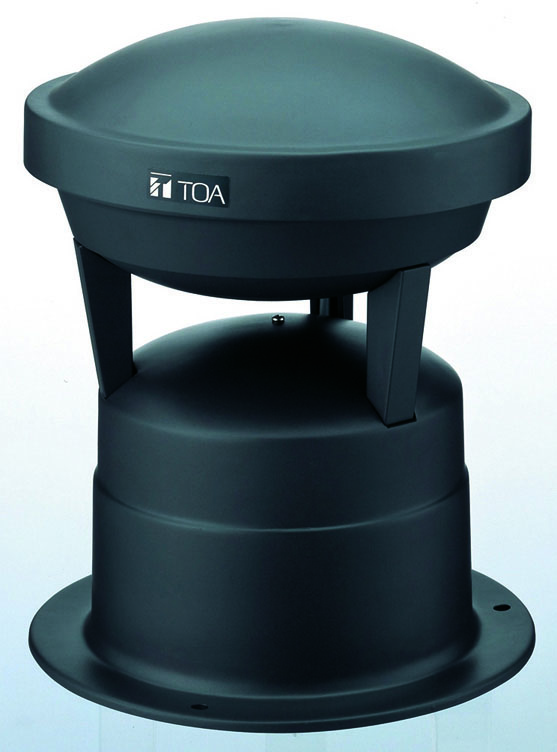

The
GS-302 Garden Speaker is a compact speaker that is ideal for
applications such as paging and background music broadcasting in various
locations such as gardens, theme parks, resort facilities and others.
The exterior is formed of corrosion-resistant material that gives it an
extended service life in adverse environments (IPX4 category). The Garden
Speakers inconspicuous design enables it to be easily installed in the
middle of garden shrubbery and virtually disappear into the
surroundings.
Features
Speakers Material ●
Speaker enclosure composed
of FRP resin (Fibre-Reinforced
Plastic (FRP) (also fibre-reinforced polymer) is a
composite material made of a polymer matrix reinforced with fibres. FRPs
are commonly used in the aerospace, automotive, marine, and construction
industries. provides exceptional resistance to corrosion and moisture,
making it ideal for installations outdoors.
Speakers Cabling ●
Speaker wiring and the base
unit may be buried in the ground. The unobtrusive design allows it to
easily blend into the surroundings. The speaker can also be positioned
in garden shrubbery.
High Impedance ●
The GS-302 is designed
exclusively for high impedance applications and is easily incorporated
into a distributed network covering a larger area.
Amplifier use for 1-2 speakers system will be A-230HV
A-230HV (Specification)
| Power Source |
220 - 230 V AC, or
12 V DC |
| Rated Output |
30 W |
| Power Consumption |
34 W (AC operation
at IEC60065) |
| Current Consumption |
4.5 A (DC operation
at rated output) |
| Frequency Response |
50 Hz - 20 kHz |
| Distortion |
1 % or less at 1
kHz, 1/3 rated power |
| Input |
MIC 1 - 3: -60 dB*
(1.0 mV), 600 Ω, unbalanced, phone jack
AUX: -20 dB* (100 mV), 10 kΩ, unbalanced, RCA pin jack |
| Output |
Speaker out:
Floating balanced
High impedance: 330 Ω (100 V)
Low impedance: 4 Ω (11 V) |
| S/N Ratio |
60 dB or more (MIC 1
- 3)
70 dB or more (AUX) |
| Tone Control |
Bass: -10 dB at 100
Hz
Treble: -10 dB at 10 kHz |
| Muting |
MIC 1 overrides
other Mic inputs and AUX input with 0 - 30 dB attenuation,
attenuation by MIC 1 input |
| Indicator |
Power LED, Signal
LED |
| Finish |
Panel: ABS resin,
black Hair Line
Case: Steel plate, black |
| Dimensions |
350 (W) × 105 (H) ×
240 (D) mm (13.78" × 4.13" × 9.45") |
| Weight |
3.5 kg (7.72 lb) |
Note:
Home owner who likes to install such a system but
will like to hear the sound and look at the speakers, system and the
installation in real setting can contact Mr. David Tan for an
appointment to view the setup in a home garden environment. We welcome
home owner to bring along their own Music CD to play in the system to
appreciate and enjoy the system. The demo will be in a garden setting
instead of the showroom so that home owner can experience first hand how
the garden sound system perform in the garden.
