SECURITEX Pelco CCTV system for Oil, Gas & Industries

The item listed below are discontinued by the manufacturer. All item in stock will be sold as it is while stock last.

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE BUT ONLY WHILE PARTS IS STILL AVAILABLE. FOR SOME OF THE EXPLOSION-PROOF SYSTEM AFTER REPAIR WILL AFFECT THE CERTIFICATION (SO THIS REPAIRS SHOULD BE THE LAST RESORT TO AFTER REPAIRS USE IS NON-EXPLOSION ENVIRONMENT. FOR ALL NON-EXPLOSION PROOF SYSTEM THERE ARE NO ISSUES.

SECURITEX HAS BEEN IN BUSINESS SINCE 1997



Analogue Industrial CCTV Division

(This site is for all client that is still using the Analogue Pelco CCTV system)

Securitex Electronic Systems Engineering understood that maintaining discontinued analogue CCTV system in Oil & Gas Plant. Refinery. Marine environment etc are very hard when spares and support become scares when such systems & equipments are discontinued. This kind of system technology has serve the industries for decades, we can assist client to solve this issue while they wait for a suitable time to migrate their system to digital technology. Securitex carry the Pelco CCTV system equipment and we provide system designed replacement and installation for the Oil & gas, Pharmaceutical, Chemicals and even vessel application. Below is the equipment and the documentation. If you need this item you can contact us at sales@securitex.com.sg.

Due to the analogue CCTV system is EOL. Securitex may still carry some very old discontinued stock for existing client who needs them. This equipment will be sold as it is while stock last.

For client still using this old system, you can still contact Securitex for service and maintenance, however the quality of the service and maintenance is greatly subjected to whether if we can get the exact spares. In the event we cannot get these parts we will recommend alternative solution. Some CCTV system are using the 3rd party technology like the  OT Systems Fiber Optic Technology, NKF Fiber, GE Fiber. for Analogue System application we are still able to supply as well. Some Pelco Analogue CCTV can also be integrated to 3rd party Control Technology like Ernitec Telemetry system spare parts, BBV Telemetry Systems,  Baxall Limited Telemetry. etc. We may still able to provide parts and technical support.

For Motorized zoom lenses we carry a few brand and range of Power Optical Zoom. CLICK HERE FOR THOSE THAT IS IN STOCK. NEW AND RECONDITIONED. We also carry the manual and auto iris lenses as well.

For stainless steel explosion proof system we do carry some Honeywell product like NEXH363PW-2. HUSS E8X Digital Video Encoder & also Ultrakey LITE HJC5000 if you are keen can contact us.

All request please WHATSAPPS 90213896 or email: sales@securitex.com.sg

 Model

 Image  Description  Download
Pelco PT1260EX



Pelco PT1260EX heavy duty Explosion Proof Camera Enclosure

The PT1260EX pan/tilt has been engineered to meet the rigorous requirements of explosion proof and dust-ignition-proof electrical equipment installed in Class I (Group C and D) and Class II, (Group E, F, and G) hazardous locations.
Features:

  • Meets NEMA Type 4X Standards

  • 120 or 230 VAC Operation

  • Rugged Construction

  • For Use in a Variety of Harsh and/or Hazardous Environments

  • Heavy Duty Adjustable Worm-Gear Final Drive

  • Optional Preset Positioning Capability

  • Limit Stops Internally Adjustable

  • Indoor/Outdoor Applications

  • Maximum Load 100 Pounds (45.4 kg)

call to check stock

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET

INSTALLATION MANUAL

NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE


Pelco EHX-E Series

EHX-4E Explosion Proof Enclosure

The EHX*E Series explosion proof camera enclosures are used in explosive and hazardous atmospheres throughout the world. They are designed to meet the rigorous requirements of explosion proof and dust-ignition proof electrical equipment for installation and use in hazardous locations. These enclosures are also waterproof and dust tight.

Features:

  • Aluminum Construction

  • Adjustable Mounting Cradle

  • Available in 4-inch (10.16 cm), 6-inch (15.24 cm) and 8-inch (20.32 cm) Diameters

  • For use in a Variety of Harsh and/or Hazardous Environments, including Marine Environments

  • Meets NEMA 4X and IP66 Standards

  • Use with Fixed Mount or Explosion proof Pan/Tilt

call to check stock

 EM22 Manual

 EHX4E Brochure

 EHX4E Manual

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET& INSTALLATION MANUAL

NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE


Pelco PT570/24



Pelco PT570P-24 Medium Duty 24VAC Pan / Tilt Unit

The PT570-24P are medium duty pan/tilts designed for outdoor applications. Both units feature rugged worm gear final drives to minimize backlash and prevent wind drift. The drives are fully adjustable for wear.
Features:

  • Easily Serviced

  • Inverted Operation

  • External Limit Stops

  • Outdoor Applications

  • Adjustable Worm-Gear Final Drive

  • 120 VAC or 24 VAC Operation

  • Capable of Auto/Random Scan Operation when used with Appropriate Control

  • Maximum Load 40 Pounds (18.14 kg)



call to check stock

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET

INSTALLATION MANUAL

NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE

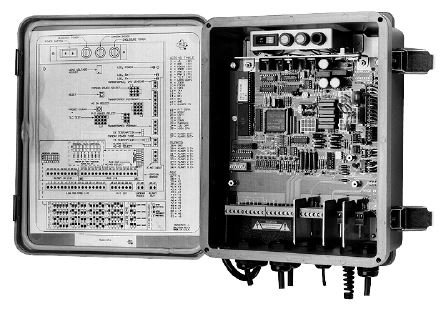

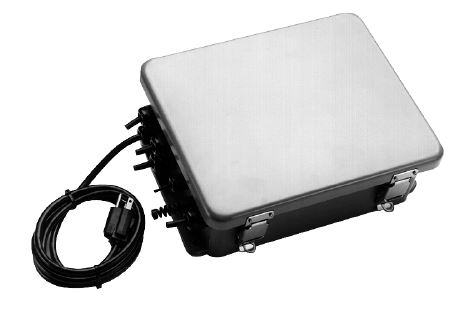

Pelco ERD97P21-U

ERD97P21-U receiver is an RS-422, P Protocol Receiver


The ERD97P21-U receiver is a stand-alone unit capable of controlling pan/tilt, camera, and lens functions and is designed to be used with systems that transmit Pelco P protocol. Standard features include 80 presets, frame scan, and random scan.
Features:

  • Easy to Install
  • Standard Features Include:
    • 80 Presets
    • Frame Scan
    • Random Scan
  • RS-422, P Protocol for Pan and Tilts, Including Legacy®
  • Environmental Housing Meets NEMA Type 4X Standards
  • Input Power, Pan/Tilt Power, and Camera Power Selectable via Tool-Less Plug-ins
  • Adjustable Lens Voltage
  • LED Indicators for Power and Transmit/Receive Data
  • Standard Single Alarm Input (9 with Option Board)
  • Standard Single Alarm Output (9 Auxiliary Outputs with Option Board)
  • Auxiliary Outputs Jumper-Selectable for Normally-Open or Normally-Closed Operation
  • Address Selectable
  • Data Rate Selectable

call to check stock

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET

INSTALLATION MANUAL



NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE








Pelco ERD2200 Receiver



Pelco ERD2200 Receiver

The Pelco ERD2200 Receiver operates all of Pelco’s fixed speed pan/tilts and domes. This receiver offers removable screw terminal connectors for quick and easy installation. Power and communication indicators are provided for troubleshooting purposes. The ERD2200 works with standard and extended Coaxitron controllers, including the CM6700/7500/8500/9500, KBD9000, MPT9000/9500, and MX4000.

call to check stock

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET

INSTALLATION MANUAL

NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE
Pelco IRD2024

Pelco IRD/ERD2024 Receiver

The IRD/ERD2000 Series receiver operates all of Pelco’s fixed speed pan/tilts and domes. It replaces the non-preset models in the CX9000RX/RXI Series receiver. This receiver offers removable screw terminal connectors for quick and easy installation. Power and communication indicators are provided for troubleshooting purposes.


• Indoor/Outdoor Models
• Coaxitron® Compatible, Fixed Speed
• Pan/Tilt Control, Including Auto and Random Scan
• Lens Control (Zoom, Focus, Iris)
• Camera Power (24 VAC )
• Enclosure Power (Outdoor Model Only)
• Two Auxiliary Outputs
• NTSC or PAL Video
• Test Local Control Capability
• Ground Isolated BNCs (Eliminates Ground Loops)
• Video Transient Protection
• Power and Communication Indicator LEDs
• Lockable Enclosure (Outdoor Model Only)



call to check stock

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET

INSTALLATION MANUAL

NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE
Pelco CM6700



Pelco CM6700-MXB4 CM6700 Matrix 16 In X 4 Out

The CM6700 Matrix switcher/controller is a very affordable, highly versatile, full-featured cross-point matrix switcher. The CM6700 provides switching and control for 16 video inputs and up to 4 monitor outputs from any one of up to 8 keyboards.

• 16 Video Inputs; 2 or 4 Video Outputs
• 20-Character Camera Title
• Time (24-Hour or AM/PM Formats); Date (4 Formats)
• Alarm Display Call-up from 18 Direct-Connect Alarm Inputs
• Video Inputs Individually Selectable for Terminating or Looping
• Coaxitron® Compatible
• Individual Monitor Sequential Switching with Preset Call
• Compatible with Pelco's RS-422 D or P Protocol
• Camera Control Selection: Coaxitron® or RS-422; Individually Selectable per Camera
• Control Genex® Multiplexers
• Selectable Data Port – RS-232/RS-422/RS-485
• Password-Protected Menu Programming
• User Partitioning to Prevent Unauthorized Viewing
• Compatible Keyboards:
– Switcher Only (KBD100)
– Switcher Plus Multi-Speed Control, Presets, Patterns, Receiver Auxiliary (KBD200A)
– Switcher Plus 3-axis Joystick for Variable Speed PTZ Control, Presets, Patterns, Receiver Auxiliary (KBD300A)
• Optional CM6700-VMC Two-Monitor Expansion Card
• Includes Spanish-Language Menus




call to check stock

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET

INSTALLATION MANUAL

NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE










Pelco CM6800

Pelco CM6800-32X6 CM6800 Matrix 32 X 6 Out

The CM6800 Matrix switcher/controller is a very affordable single box solution for medium-sized matrix switch applications. This fully integrated package offers a highly versatile, cross-point matrix switcher. The CM6800 provides switching and control from any one of up to 10 keyboards. The system can also be used to control other devices, such as Genex® multiplexers.

• 32 Video Inputs, 6 Video Outputs
• Inputs Allow for Viewing and Control of Cameras, Domes, PTZs, Multiplexers, and Other Devices
• Includes Multiple Language Menus and On-Screen Text
• Video Inputs Individually Selectable for Terminating or Looping with Switches on Rear Panel
• Supports Coaxitron® and RS-422 Camera Control
• Password-Protected Menu Programming
• Windows®-Based Manager Software
• System Partitioning Prevents Unauthorized Viewing and Control
• Integrated Color Bar Generator
• Wide Selection of Peripheral Components, Including Keyboards, Alarm Boxes, and Relay Boxes
• Macro Programming and Event Timers Automate System Operation
• Multiple Built-in ASCII Communication Ports
• Remote Viewing and Control Over TCP/IP Networks Using PelcoNet™



call to check stock

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET

INSTALLATION MANUAL

NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE






Pelco KB300A



Pelco KBD300A keyboard

The Pelco KB300A Keyboard is a full-function, desktop keyboard controller that can be used in a variety of applications. A barrel-type joystick provides precise pan and tilt control of fixed speed and variable speed receivers. Twisting the joystick clockwise or counter clockwise zooms the lens in or out. Keys select cameras and monitors; operate presets, patterns, auxiliaries, and sequences; open and close the iris; zoom and focus the lens; and start and stop auto, frame, and random scanning. The keyboard can be used in three modes of operation: CM6700 Mode, CM6800 Mode, and Direct Mode. The KBD300A keyboard automatically recognizes the mode. In the first two modes, the keyboard is plugged into a CM6700, CM6800, or CM9760-SAT Switcher Controller Unit (SCU) and is used to program and operate the SCU. The maximum number of keyboards per unit is eight (CM6700 and CM6800-32X6), sixteen (CM6800- 48X8, CM6800E-48X8, and CM6800-96X16) or four (CM9760-SAT). In CM6700/CM6800 applications, the keyboard can control cameras connected directly to the SCU or through an MX4000 Series Genex multiplexer. If you do not need all the features of the CM6700/CM6800 SCU, but want the same keyboard functionality, then one keyboard can be wired directly to camera receivers in Direct Mode (KBDKIT required). Up to 16 receivers can be wired to a keyboard; however, a switcher such as an MS500 or VA6100, is required to route video to the monitor. Direct Mode uses two-wire control of receivers using Pelco’s P or D protocol. The KBD300A keyboard can also be used for on-screen programming of the CM9760-MDA master distribution amplifier. When used with the CM9760-DMR data manager, up to four KBD300A keyboards can be used to control a single Pelco P or D protocol device such as a Spectra dome or Esprit / ExSite positioning system.



call to check stock

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET

INSTALLATION & MANUAL



NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE

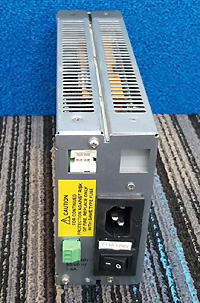

Pelco RK5PWR-120

RK5PWR-120 (3U rack is not included)

The RK5PWR-120 power supply can be used to replace a failed power supply in the RK5000PS-3U. You can easily replace the internal power supply in the RK5000PS-3U in case of failure. The front of the power supply has two LEDs and a Pelco badge. The top LED turns red when there is an alarm condition from one of the modules.

The bottom LED turns red and the blue Pelco badge stops illuminating when the power supply fails.

call to check stock

Download

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET

INSTALLATION MANUAL

NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE


Pelco FT8304 FT8304 & FR8304

Four-channel fiber optic video transmitter; multimode, ST connector

The FT8304 & FR8304 fiber transmitter and receiver provide the ability to transmit up to four composite video channels over one optical fiber. The FT8304 transmitter and the FR8304 receiver are available in multimode and single-mode versions.

Modular in design, the FT8304 and FR8304 units can be rack mounted or can be used as standalone modules. Rack mounting is accomplished using the RK5000 Series rack mount chassis. Standalone modules can be placed on a desktop or can be mounted to a wall.

Transmitter Model No.: FT8304MSTR
Compatible Receiver: FR8304MSTR
Fiber Optic Connector Type: ST
Fiber: Multimode
Wavelength: 1310 nm
Optical Power Budget: 20 dB*
Maximum Transmission Distance: 2 km (1.2 mi)*
Supplied Accessories: Regulated switching power supply with multiple plug adapters (North American, Australian, United Kingdom, and European); 100-240 VAC input, 12 VDC output, Wall clip for attachment of single module to wall

* When using 50/125 ìm fiber, subtract 3 dB from the optical power budget.
** Maximum transmission distance is limited by fiber bandwidth.
***Maximum transmission distance is based on attenuation of 0.5 dB/km plus a 5 dB buffer for connector and splice losses.


call to check stock

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET

INSTALLATION MANUAL



NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE








Pelco 85011A

FT85011A & FR85011A

Single-Channel Digitally Encoded Video with Bidirectional Data

Available in multimode and single-mode versions, the FT85011A/ FR85011A fiber transmitter and receiver provide the ability to trans- mit one unidirectional composite video channel and one bidirectional data channel over one optical fiber. In addition, patent-pending technology provides the solution for allowing Coaxitron® pan/tilt/ zoom (PTZ) control data to be transmitted the full distance of the fiber (up to 6 km for multimode fiber and up to 46 km for single-mode fiber). When using single-mode fiber, the FT85011A transmitter and the FR85011A receiver offer an exceptional optical power budget of 28 dB.

Features:

  • 8-Bit Digitally Encoded Video for High-Quality Video Transmission over a Single Fiber

  • Bidirectional Data Channel That Supports RS-232, RS-422, RS-485 (2-wire/4-wire), Manchester, Bi-Phase, and Coaxitron® Communication

  • Patent-Pending Transmission Technology Allowing Coaxitron Control at Full-Distance Capabilities

  • Integrated Wavelength Division Multiplexing (WDM) in a Single Fiber

  • Multimode Fiber Support for Distances up to 6 km

  • Single-Mode Fiber Support for Distances up to 46 km

  • Exceeds All Requirements for the RS-250C Medium-Haul Transmission Specification

  • Compatible with NTSC, PAL, and SECAM Video Standards

  • Meets NEMA TS 2 and Caltrans Traffic Signal Control Equipment Environmental Standards

  • No Performance Adjustments Required

  • 12 VDC or 24 VAC Power Supply

call to check stock

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET

INSTALLATION MANUAL



NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE






Pelco Esprit ES40

and ES41



 PELCO ESPRIT ES41 / ES41 Series Esprit ® with IOP

ES40/ES41 Series Positioning System ESPRIT® SE STANDARD AND PRESSURIZED MODELS Product Features • Receiver, Pan/Tilt, and Enclosure with Integrated Optics Package (IOP) or Pressurized Integrated Optics Cartridge (IOC), NTSC/PAL • Day/Night, 540 TVL, Autofocus, 128X Wide Dynamic Range (WDR), Motion Detection, Image Enhancement, and Electronic Image Stabilization • Integrated Window Wiper with Configurable Delay and Shut-Off (ES41 Models) • Preset Positioning Accuracy ±0.1, Variable Speed Pan: 0.1° to 100°/Sec with Proportional Pan • Window Blanking, Multishaped • Internal Scheduling Clock • On-Screen Compass, Tilt, and Zoom Display • Autotracking • Tilt Range of +36° to –85° from Horizontal • Password Protection.

NOTE:

AS THESE ANALOGUE PELCO ESPRIT RANGE OF SYSTEM IS DISCONTINUED, WE UNDERSTAND THAT MANY PREMISES ARE STILL USING THEM SUCH YOU CAN BRING YOUR SYSTEM TO SECURITEX SINGAPORE FOR CHECKING AND REPAIR ASSESSMENT. AS WE ARE STILL CARRY SPARE PARTS FOR MRO-MAINTENANCE REPAIRS & OVERHAUL THUS YOUR ORGANIZATION ARE WELCOME TO CONTACT US AND USE OUR SERVICE.



call to check stock

BROCHURE & DATA SHEET

INSTALLATION MANUAL

NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE
Pelco Esprit ES30C

and ES31C

The ES30C and ES31C Series combine a receiver, pan and tilt, enclosure, and integrated optics package (IOP) in a single, easy-to-install system.
The integrated optics package contains an auto-focus camera and lens module with programmable features.
The ES30C and ES31C systems are available with an input voltage of 24 VAC or with a selectable power source of 120/230 VAC. The systems are constructed of lightweight aluminum and have a heater, window defroster, sun shroud, and insulation blanket.

ES30C22 High resolution, color camera with Low Light™
technology, 220X zoom (22X optical zoom and 10X electronic zoom)

NOTE:

AS THESE ANALOGUE PELCO ESPRIT RANGE OF SYSTEM IS DISCONTINUED, WE UNDERSTAND THAT MANY PREMISES ARE STILL USING THEM SUCH YOU CAN BRING YOUR SYSTEM TO SECURITEX SINGAPORE FOR CHECKING AND REPAIR ASSESSMENT. AS WE ARE STILL CARRY SPARE PARTS FOR MRO-MAINTENANCE REPAIRS & OVERHAUL THUS YOUR ORGANIZATION ARE WELCOME TO CONTACT US AND USE OUR SERVICE.



call to check stock

EX-STOCK SINGAPORE RECONDITION UNIT.

BROCHURE & DATA SHEET

INSTALLATION MANUAL
Pelco Spectra IV

Spectra IV SE

Pan/tilt/Zoom Security Camera  from Pelco was designed with ease of installation and ease of maintenance in mind. Each dome system consists of three components: a back box, a dome drive, and a lower dome. These three system components are interchangeable with other Spectra IV SE dome systems, making retrofitting and application adjustments simple. Also, dome drives and lower domes can be removed and replaced reducing maintenance time. Pelco Spectra 4 is a impressive PTZ Security Camera boasting a powerful 35x optical zoom along with its other numerous features!



call to check stock



NOTE:

MRO-MAINTENANCE REPAIRS & OVERHAUL STILL AVAILABLE BY SECURITEX SINGAPORE
