SECURITEX Wireless Audio video intercom system division |
|||||||||||||||
Door station unit (DSU) |
|
||||||||||||||
|
|
Securitex Wireless A/V Intercom system, that can be move around the apartment.
WIC-730 is the solution 1 (DSU) + 1 (IMS) |
 |
|||||||||||||
|
|
Indoor monitor station (IMS) |
||||||||||||||
|
SECURITEX WIC-730 Wireless audio/video intercom system Securitex Wireless audio video intercom system "SECURITEX WIC-730" is designed to ease the site installation when there are constrain. The material use to produce this system is specially chosen from the best in the industries to ensure quality and durability for prolong used in the most harsh environment possible. The slim line designed ensure that this system can be use in almost any kind of modern interior deco. In order to ensure the mobility of the indoor station we have designed the system to be battery operated as well but the unit can also be powered from the adapter. The wireless built-in door release ensure that door and gates can also be release from the indoor monitoring unit. The outdoor unit takes its power from the power adapter supplied, the built-in door relay can be used to connect to auto-door or card access control system to release the door.
Indoor TFT monitor unit
◆ 4" color TFT display enhanced by digital image technology
◆ Controlled by built-in microprocessor
◆ Wireless type installation
◆ Unlock door wirelessly
◆ Built-in surveillance function
◆ RF interference can be avoided by switching
channel
◆ Indoor monitor can be wire and wireless
(Dimension: 148mm X 108mm X 28mm)
◆ Talking volume adjustable
◆ Complex frequency with multi-channel

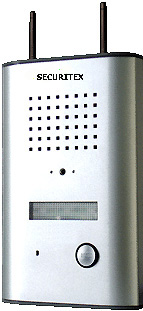

Outdoor camera unit
◆ Elegantly designed with silver finishes
and very thin (28mm) panel
◆ Built-in high quality speaker and
microphone ensure high quality audio
◆ Built-in high resolution wide angle colour
CCD camera to create a very high quality image on the Monitor
◆ Built-in light unit for night application
◆ Built-in dipole antenna ensure high
quality audio and video transmission
◆ RF interference can be avoided by
switching channel
◆ Outdoor unit dimension: 110mm X 184mm X
28mm
◆ Hands free communication
◆ Complex frequency with multi-channel
Technology Parameter
Video Frequency: 2400-2483MHz
Modulation/Demodulation type: FM
Receiving
sensitivity: ≥-85dBM
Video transmit
power: 40-50mW
Channel: 5 channel]
Audio Frequency:
902.75-904.75MHz & 905.25-927.25MHz
Modulation/Demodulation type: FM
Duplex swimsuit
city: ≥-110dBM
Audio transmit
power: 0.5-1mW
Channel: Multi
channel
